HP Designjet 1000 Series Printers - TWI: Setup Instructions

	Introduction
	Unpack the components
	Unpacking the components
	Assemble the printer stand
	Unpack the printer
	Assemble the printer

Document number: BPP90190

Last Updated: 14-Apr-2003

Minimum skill level: 1

Introduction

Follow the directions below to setup an HP Designjet 1000 series printer.

NOTE: Initial setup of an HP Designjet 1000 series printer requires two CE's.

Unpack the components

NOTE: To move the shipping container, use the eight handles provided on the box.

Ensure the following components are in the shipping container, stand assembly box, and end packing pieces before continuing:

Quantity	Component
2	Screw Drivers
18	Screws
12	Media-Bin Retaining Clips
6	Media-Bin Arms
2	Media-Bin Capping Strips
1	Media-Bin Support
2	Feet
2	Legs
1	Base Tray
1	Cross Brace
3	Media Guides
1	Front Panel Overlay
1	Printer Body
1	Assembly Instruction Booklet

Unpacking the components

NOTE: To move the Shipping Container, use the eight handles provided on the box. Four or more people should perform this procedure.

1. Before unpacking the printer, ensure at least 3 meters (9 feet) of space is available in front of the shipping container.
2. Remove the two packing straps and plastic handles from both sides of the container.

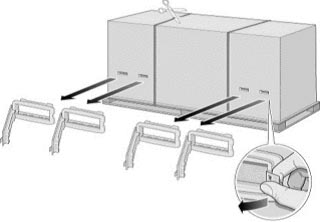

Figure 1: Removing straps and plastic handles

3. Remove the Outer Sleeve from the container, then remove the end packing pieces, accessory boxes, and stand box.

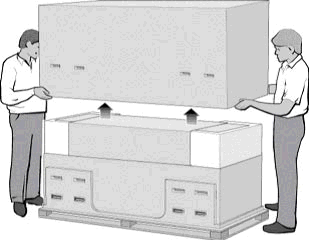

Figure 2: Removing outer sleeve

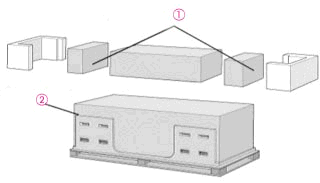

Figure 3: Removing accessory boxes and stand box



1- Accessory boxes
2- Stand box

4. Remove the plastic handles from both sides of the container.

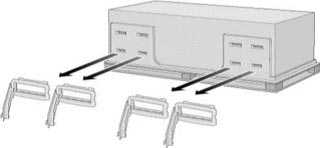

Figure 4: Removing plastic handles

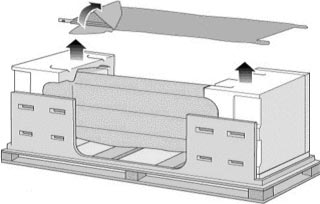

5. Remove the inner sleeve from the container, then the two packing pieces.

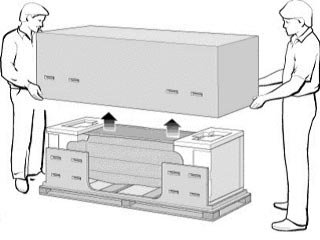

Figure 5: Removing inner sleeve and packing pieces

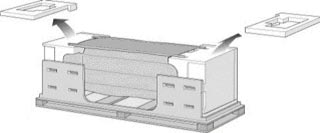

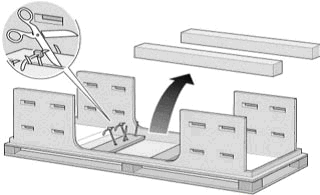

Figure 6: Removing the packing pieces

6. Remove the base tray and the protective plastic covering.

Figure 7: Removing base tray


NOTE: The bas tray appearance may differ from the illustration.

7. Unpack the stand components from the stand box.

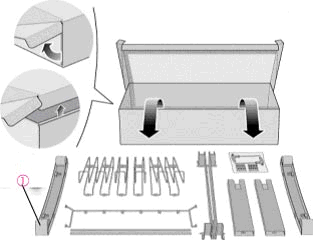

Figure 8: Stand components



1- Anti-slip material
CAUTION: Do not remove the anti-slip material from the feet.

Assemble the printer stand

NOTE: Assemble all the Stand Components on a flat surface.

1. Attach the legs to the cross brace.

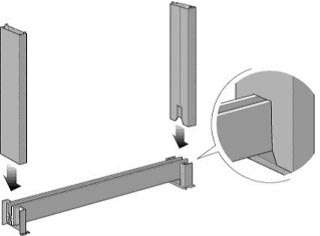

Figure 9: Attaching legs to cross brace

2. Attach the media-bin support to the legs with four screws (two people should perform this step).

Figure 10: Attaching the media-bin support



1- Media-bin support

3. Install four screws into the legs (two screws into each leg).

Figure 11: Leg screw installation

4. Carefully clip the feet onto the base tray.

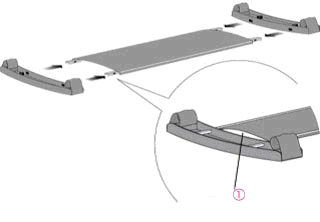

Figure 12: Clipping the feet onto the base tray



1- Correct curvature of the base tray

5. Position the feet onto the leg assembly, and secure the feet to the legs with six screws.

Figure 13: Correct feet positioning



1- Anti-slip material
CAUTION: Do not remove the anti-slip material.

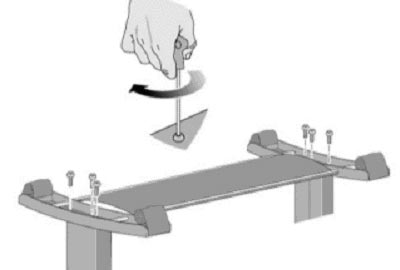

Figure 14: Securing the feet to the legs

6. Some screws may have come loose during assembly (verify all screws are fully tightened).

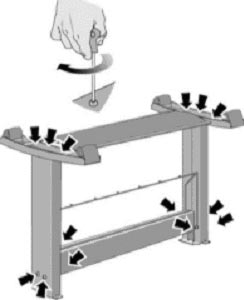

Figure 15: Re-tightening screws

Unpack the printer

1. Remove the end packing supplements.

Figure 16: Removing the packing supplements



1- Packing supplements

2. Pull down the two flaps on the side of the container (with the corrugated edges).

Figure 17: Pulling down the flaps



1- Perforations

3. Slide the printer to the side of the container with the flaps turned down, and carefully roll the printer out.

WARNING: The printer is heavy and requires two people to perform this step.

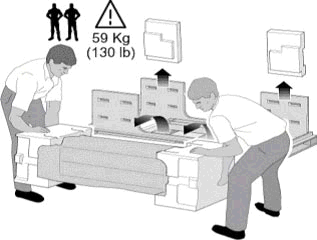

Figure 18: Rolling printer



Figure 19: Correct positioning of printer form following removal from crate

4. Gently pull aside the protective plastic covering, put the stand assembly onto the printer, then secure it with four screws.

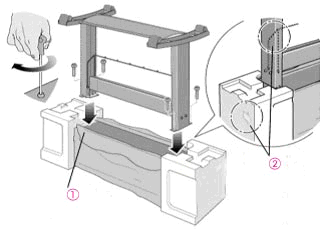

Figure 20: Securing the printer to the stand



1- Pull aside plastic covering
2- Orientation of the Media-bin support and arrow

WARNING: The printer is heavy and requires two people to perform the next step.

5. Carefully lay the printer on its side, and then lift the printer into the upright position (two people should perform this step).

Figure 21: Laying the printer on its side



Figure 22: Standing the print up

6. Remove the end packing and the plastic covering from the printer.

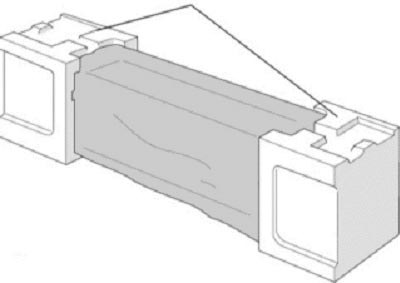

Figure 23: Removing the end packing and the plastic covering

7. Tear off the anti-slip material from the wheels (the printer does not need to be lifted to perform this step).

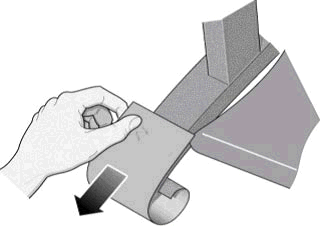

Figure 24: Removing the anti-slip material

8. Remove the two packing straps and the silicon bag, then remove the protective covering from the printer window.

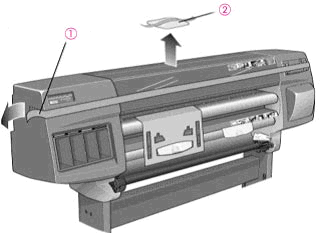

Figure 25: Removing packing straps and silicon bag



1- Packing strip
2- Desiccant bag

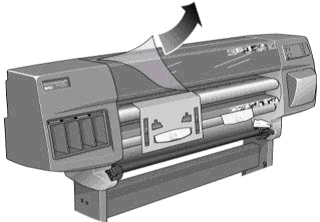

Figure 26: Removing plastic covering from top cover window

9. Open the window and remove the Carriage packing piece.

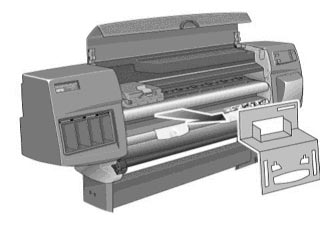

Figure 27: Removing the carriage packing

10. Remove the two white arrows (pull the arrow towards you, and remove it from the printer).

Figure 28: Removing the white arrows

Assemble the printer

NOTE: Steps 1 and 2 below are for the Designjet 1000 series "A" models only (C6074A, C6075A). Continue with Step 3 if the printer is a "B" model (C6074B, C6075B).

1. Unpack the three media guides (removed earlier from the end packing pieces).
2. Snap the media guides into position on the back of the printer.

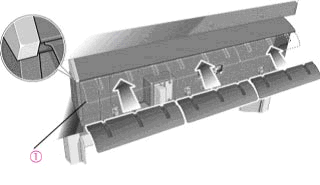

Figure 29: Snapping the media guides into position



1- Back of printer

3. From the back of the printer insert the six media-bin arms, and secure the arms to the cross brace with six retaining clips.

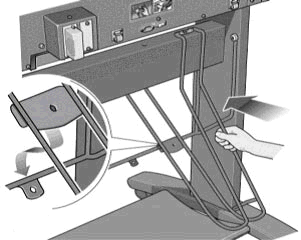

Figure 30: Inserting the media-bin arms



Figure 31: Securing media-bin arm with retaining clip

4. Secure the arms to the media-bin support with six retaining clips.

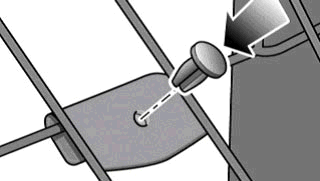

Figure 32: Securing the arms to the media-bin support

5. Push together the media-bin capping strips (2), enclosing the media-bin arms.

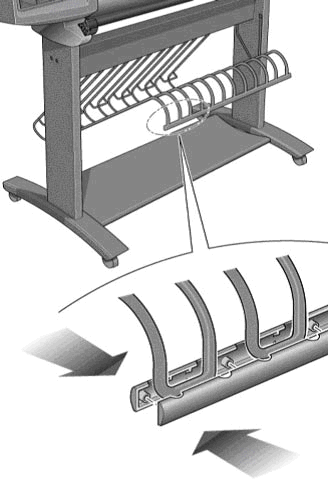

Figure 33: Attaching the media-bin capping strips

6. Attach the front panel overlay to the front panel. Ensure that the cutouts on the overlay are correctly positioned on the front panel locating tabs.

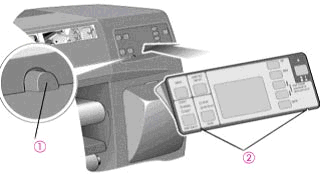

Figure 34: Attaching the front panel overlay



1- Locating tab
2- Cutouts

7. Remove the two media rolls from the shipping container.

Figure 35: Removing the two media rolls

8. The printer is now assembled.

Figure 36: Assembled printer
