HP Designjet cc800ps, 815mfp and 4200 Scanner - TWI: System Error 30-140

	Contact center agents (troubleshooting to be performed with customer)
	Parts required (part numbers are subject to change)
	CE instructions

Document number: BPP90180

Last Updated: 03-Jul-2003

Minimum skill level: 3

NOTE: Only a case specialist will predict camera parts!

The correction of Camera A has failed, and is displayed as system error 30-140 on the touch-screen monitor, or by the following scanner LED light sequence on the scanners front panel:

• Diagnostic = Flashing
• Wait = Flashes once
• Ready = Off

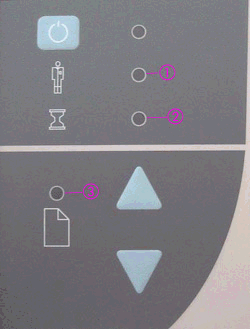

Figure 1: Scanner front-panel LED's



1- Diagnostic LED
2- Wait LED
3- Ready LED

Possible causes are a dirty glass plate or Camera A is incorrectly aligned. Follow the steps listed below to determine the actual cause of the failure and to replace the appropriate parts.

Contact center agents (troubleshooting to be performed with customer)

The steps below are designed to achieve remote resolution of the issue. If the troubleshooting steps below appear to resolve the issue, attempt to verify scanner functionality. If the issue persists following the steps below, generate a CSO for service.

WARNING: When cleaning any part of the scanning area, DO NOT use abrasives, acetone, benzene or fluids that contain these chemicals. Do not spray liquids directly onto the scanner glass plate or anywhere else in the scanner. Apply cleaners to lint-free cloths only.

NOTE: Leave the scanner on when cleaning the scan area. Doing so provides better lighting to view of particles on the Glass plate and surrounding areas.

1. Open the scanner cover by placing your fingers just inside the insertion slot and flip the cover upwards to expose the scan area.
2. Remove the Guide plate by pressing down on the plate as you pull the left and right sliders towards the scanner's center (until the metal safety buttons on each side, pop up).

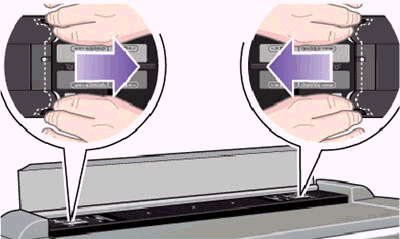

Figure 1: Removing the Guide plate

3. Use the two handles to lift out the Guide plate.
4. Gently wipe the Glass plate. Clean the glass with a lint-free cloth and a mild streak-free glass cleaner.
5. Dry the glass completely using a separate clean, dry lint-free cloth (like the one provided with the maintenance kit).
6. Turn the Guide plate, which was removed in Step 5, upside down.
7. Clean the white background assembly. Wipe the white metal area with a lint-free cloth and a mild streak-free glass cleaner.

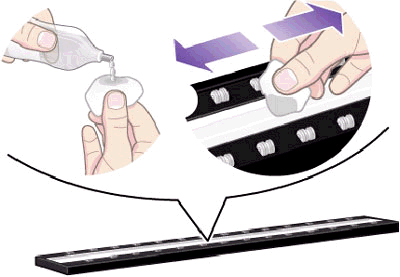

Figure 2: Cleaning the white background assembly

8. Clean the platen rollers. Wipe the rollers with a lint-free cloth and a mild streak-free glass cleaner.

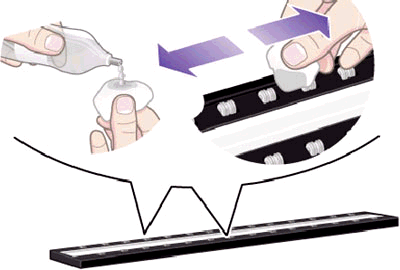

Figure 3: Cleaning the platen rollers

9. Dry the platen and rollers completely using a separate clean, dry lint-free cloth.
10. Re-install the Guide plate and attempt to verify scanner functionality (re-perform function that caused error).
11. If no error, the problem has been resolved.
12. If the problem persists, generate a CSO for service (send all required parts as listed below).

Parts required (part numbers are subject to change)

Part Description	Designjet cc800ps	Designjet 815MFP and 4200 Scanner
Camera Board (Required)	Q1261-60013	Q1261-60013
Driver Board (Required)	Q1261-60011	Q1261-60011
Fluorescent Lamp (Required)	Q1261-60027	Q1261-60027
Service Patterns (Required)	Q1261-60037	Q1278-60012
Maintenance Kit (Recommended)	Q1261-60060	Q1261-60060

NOTE: If Removal and Installation instructions are needed for reference during any repairs performed, refer to the Service Manual available on the Partner Care Web site (http://partner.americas.hp.com/) for review or download.

CE instructions

If any of the troubleshooting steps listed below solve the problem, attempt to verify functionality. If functionality is verified, no additional parts should be replaced.

1. Verify the scan area has been cleaned as instructed above.
2. Run SCANtest 6, test 9 and check the light profile (refer to pg. 1-3 and the Adjustment Chapter of the Service Manual).
3. If the light profile is distorted, possible causes include:
• Incorrect vertical positioning of the camera, reposition and test.
• Incorrect vertical alignment (run SCANtest 6, test 11 or Scanner Maintenance). Following the test, attempt to verify functionality before continuing.
• If the lamp does not turn on, replace the lamp and if necessary, replace the Driver board (refer to pg. 4-24 of the Service Manual).
• Corrupted Basic Calibration - run the Scanner Maintenance.
• Replace the Camera Board for Camera A (refer to pg. 4-16 of the Service Manual).

NOTE: If ANY adjustments have been made to either camera A or B, Scanner Maintenance MUST be done before the scanner can be used.
